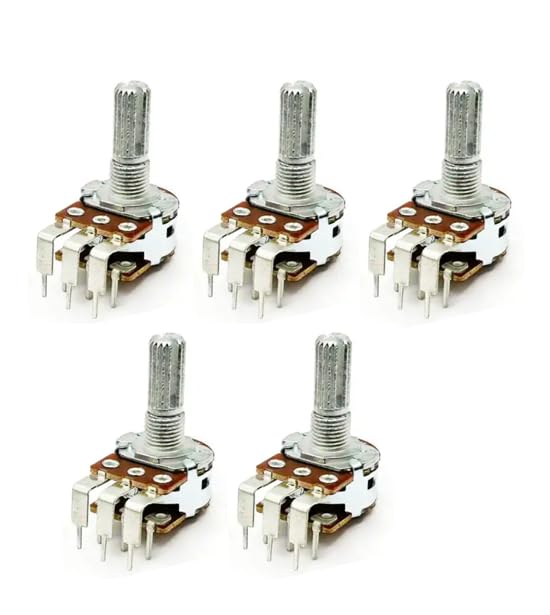

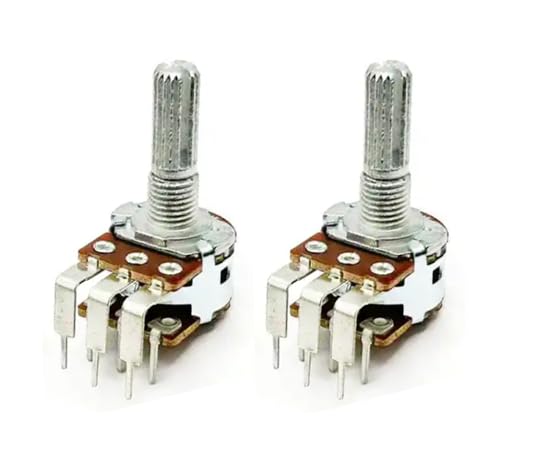

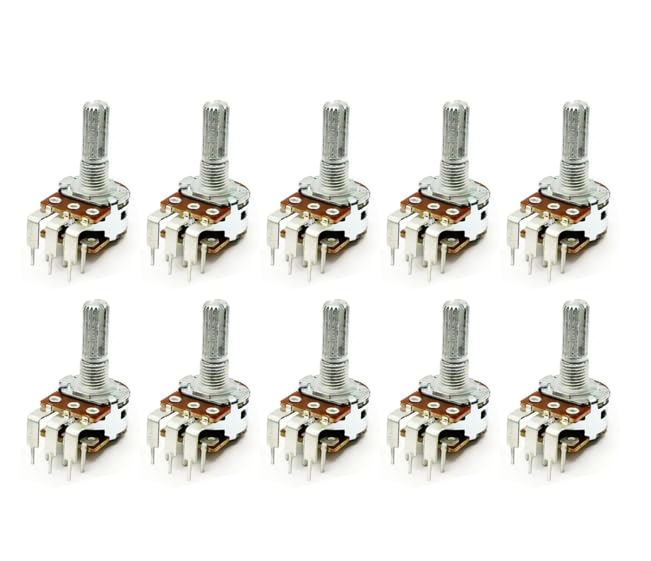

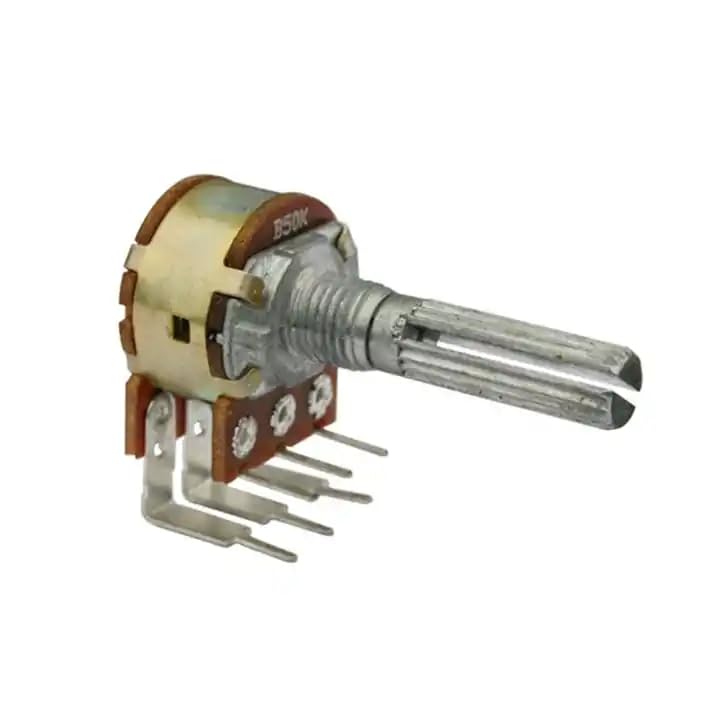

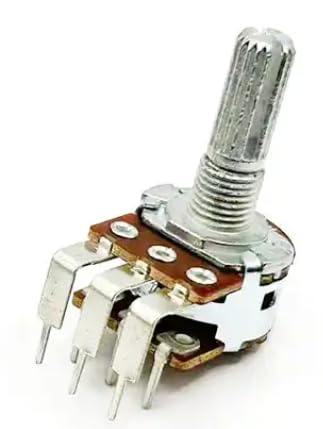

SP B50K Ohm Dual Linear Taper 6-Pin Rotary Potentiometers (Pack of 5) - Perfect for Audio Equipment, Guitar Pedals & DIY Electronics Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:92645829
Product Description
Features: 50K ohm, 6 Terminals, Dual Linear (Type B), suits most standard knobs. Top adjustment type and knutled shaft for easy operate in daily use time. Mainly used to control electronic musical instrument, loudspeaker, CD/DVD player, etc
Product Features
Type dual potentiometer; This is one item of dual gang, linear taper, carbon track potentiometer
These are new items and come with a nut and a washer for mounting on a front panel. The splined shaft is 6mm diameter. The mounting hole required is 7mm diameter
The connection pins will allow either PCB mounting or soldered wire connections
The "B" prefix before the track resistance value denotes a linear track taper; The max power rating is 0.2W per section

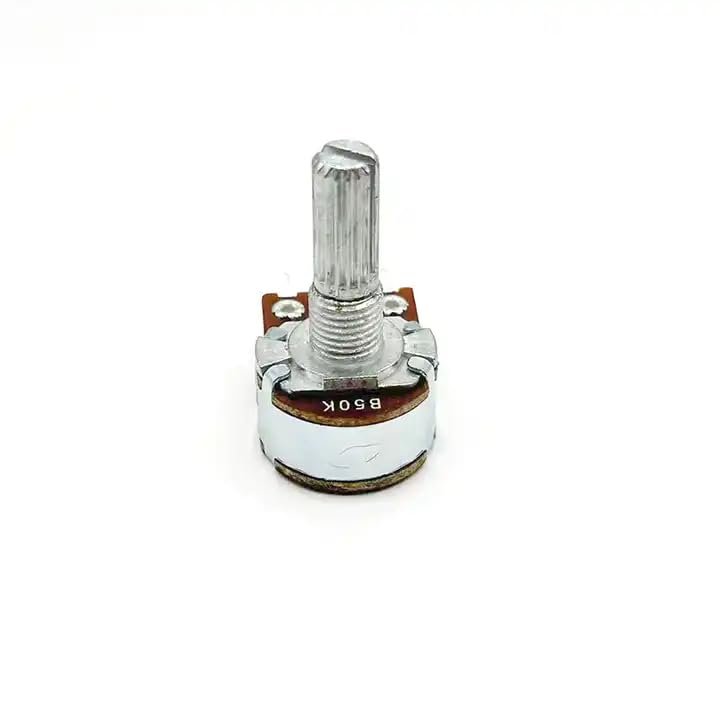

If you have a pot with a track label of B503, this is a B50K where 3 is the number of zeros after 50 in Ohms. A 502 would be 5K, a 472 would be 4K7 etc. Sometimes pots may also be marked with the B as a suffix e.g. 50K.
